Paper Cone 96dB 10 Inch 96dB 400W RMS Disco Sound System

Product Categories
Guangzhou Huiyin Audio Co., Ltd.
Contact Now

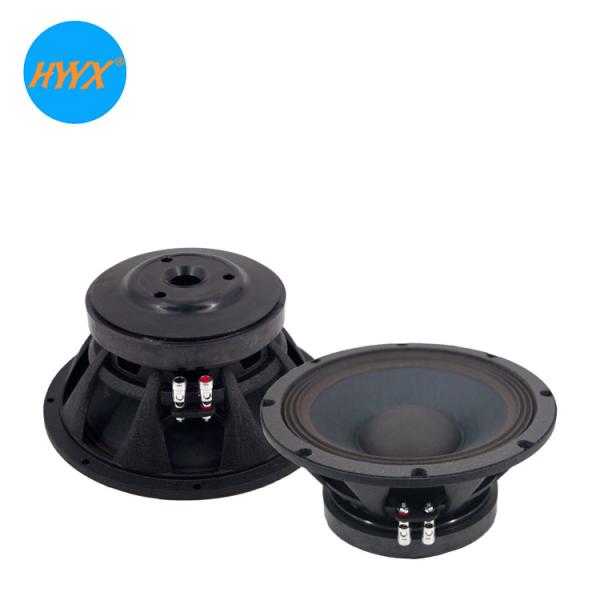

Paper Cone 96dB 10 Inch 96dB 400W RMS Disco Sound System

  • 1
  • 2
  • 3

Place of Origin : Guangdong, China

Brand Name : HYYX

Model Number : HYW-1065-078

Supply Ability : 10000 Piece/Pieces per Week

Packaging Details : 1. Inside + outside strong double boxes 2. Customized

MOQ : 2 Piece/Pieces

Price : $20.00 - $50.00 / Piece

Power : 400W

Frequency Range (Hz) : 40hz-2khz

Dimension (L x W x H) : NO

Product Name : 10 inch speaker

Sensitivity : 96dB

Frequency Response : 40Hz-2KHz

Nominal Impedance : 8 ohm

Magnet material : Ferrite

Rated Power : 400W

Max power : 800W

Voice coil diameter : 65mm /2.5 inch

Cone material : Paper

Basket material : Die-casting aluminium

Port : Huangpu, Nansha

Contact Now

10 inch woofer quality speaker professional audio speaker

Product Description
Specification


Features :

- 10 inch powerful woofer speaker for high quality requirement
- 800W continuous program power capacity / 400W RMS
- 97dB sensitivity 1W/1M
- 40hz-2khz Frequency response
- 2.5 inch/65mm copper voice coil
Specification :
Specification
Nominal diameter
260/10
mm/inch
Nominal impedance
8
ohm
Min impedance
5.2
ohm

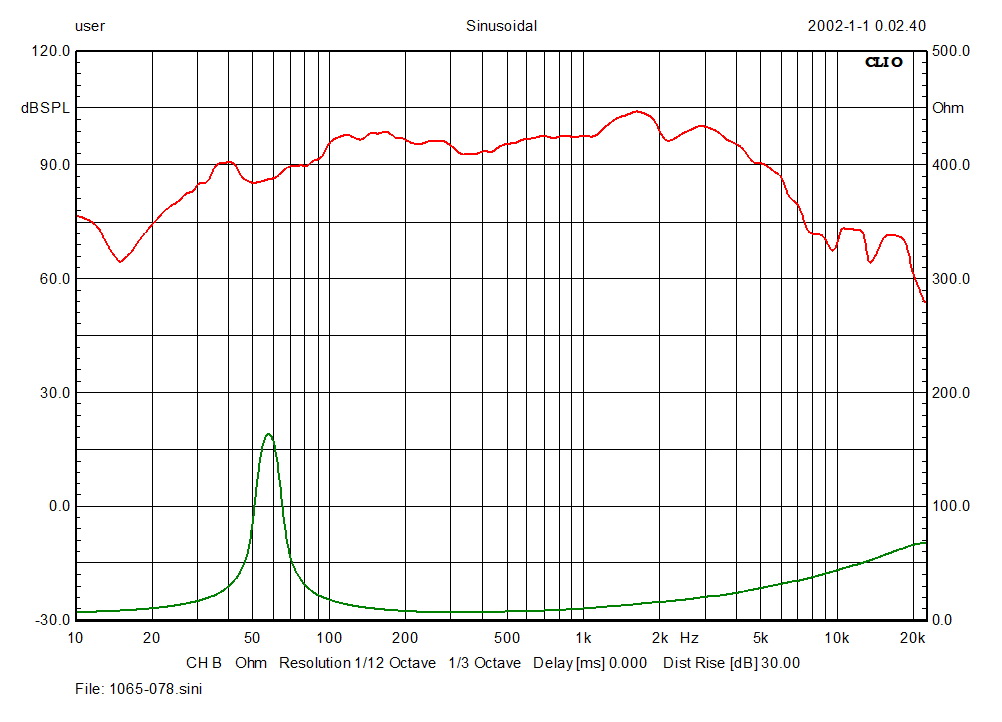

Frequency response
40-2k
Hz
Magnet material
Ferrite
Sensitivity (1w/1m)
96
dB
RMS power handling
400
Watts
Continuous power handling
800
Watts
Voice coil diameter
65/2.5
mm/ inch
Winding material
Copper
Cone material
Carbon
Surround material
Cloth
T/S Parameter
Fs
57
Hz
Re
5.2
Ω
Qes
0.27
Qts
0.23
Qms
7.8
Vas
38.8
L
Cms
0.23
mm/N
Mms
33.2
gr
BL
15.5
N/A
Xmax
7
mm
Mounting information
Overall diameter
265
mm/inch
Bolt Circle diameter
250
mm/inch
Baffle Cutout diameter
237
mm/inch
Depth
132
mm/inch
Shipping information
Net weight
5.2
KG
Shipping weight
6.3
KG
Shipping box
260x260x135
mm

Paper Cone 96dB 10 Inch 96dB 400W RMS Disco Sound System
